STARZ Cat5e cable network lan cable pure copper cca ul listed pvc lszh 1000ft SZC5FBC manufacturer from China STARZ Cable Technology Limited

STARZ Cat5e cable network lan cable pure copper cca ul listed pvc lszh 1000ft

Price:	10.0 USD
Payment Terms:	T/T,L/C,WU
Place of Origin:	Guangdong, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: SZC5FBC

Production Capacity: 5000000meter/month

Delivery Date: 15-18working days

Shielded: UFTP

Conductor: Solid 0.51mm

Jacketing: PVC LSZH PE

Production: Real factory

Contact: peter@starzcable.com

Means of Transport: Ocean,Land,Air

Packing: 305m/BOX

Brand Name: STARZ

Category: CAT5E FTP

Material: Copper or CCA

Delivery time: 25days

Company: STARZ CABLE

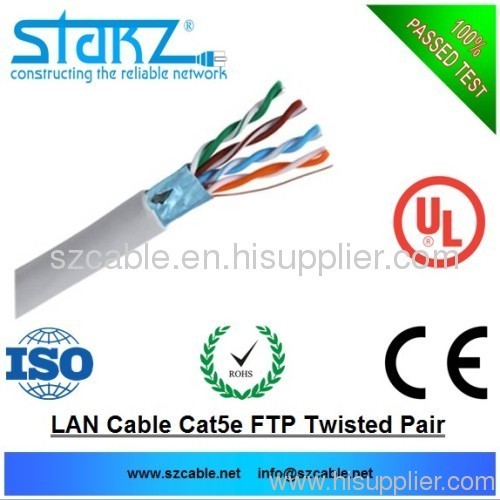

STARZ CAT5E CABLE
FTP with 0.51mm conductor
PVC jacketing or LSZH available
FLUKE TESTING
305M/Box easy pull box packaging

Application:

Meet ANSI/EIA/TIA 568-B.2-1 requirements

100 Base-T4

100 Base-TX

100VG-AnyLAN

1000 Base – T (Gigabit Ethernet)

155Mbps ATM

622 Mbps ATM

Description:

Shielded Copper cable, 4 pairs, category 5e, solid

Conductor diameter: 0.50 mm (24 AWG)

Conductive material: Pure Copper

Conductor insulation: HDPE

Insulated conductor diameter: 0.98 ± 0.05 mm

Jacket thickness: 0.50 mm (Min. Thickness: 0.45mm)

Outer cable diameter: 5.8 ± 0.20 mm

The cable jacket: PVC

Shielding: Aluminum Mylar Spirally Wrapped

Drain wire: 1 / 0.40 ± 0.008 mm or 7/0.12± 0.008 mm

An aluminum tape shield is helically applied over the cable core with a minimum overlap of 25% or 5 mm

Technical characteristics:

Minimum bend radius: 4 outer cable diameters
Conductor elongation: 14% minimum
Pulling strength: 92 N
Breaking strength: 400 N
Installation temperature: -5°C – +50°C (+23°F – +122°F)
Operating temperature: -20°C – +75°C (-4°F – +167°F)

Cable is used for indoor installation

PACKAGE INFO:
Standard package: 305 m (1000 ft)
